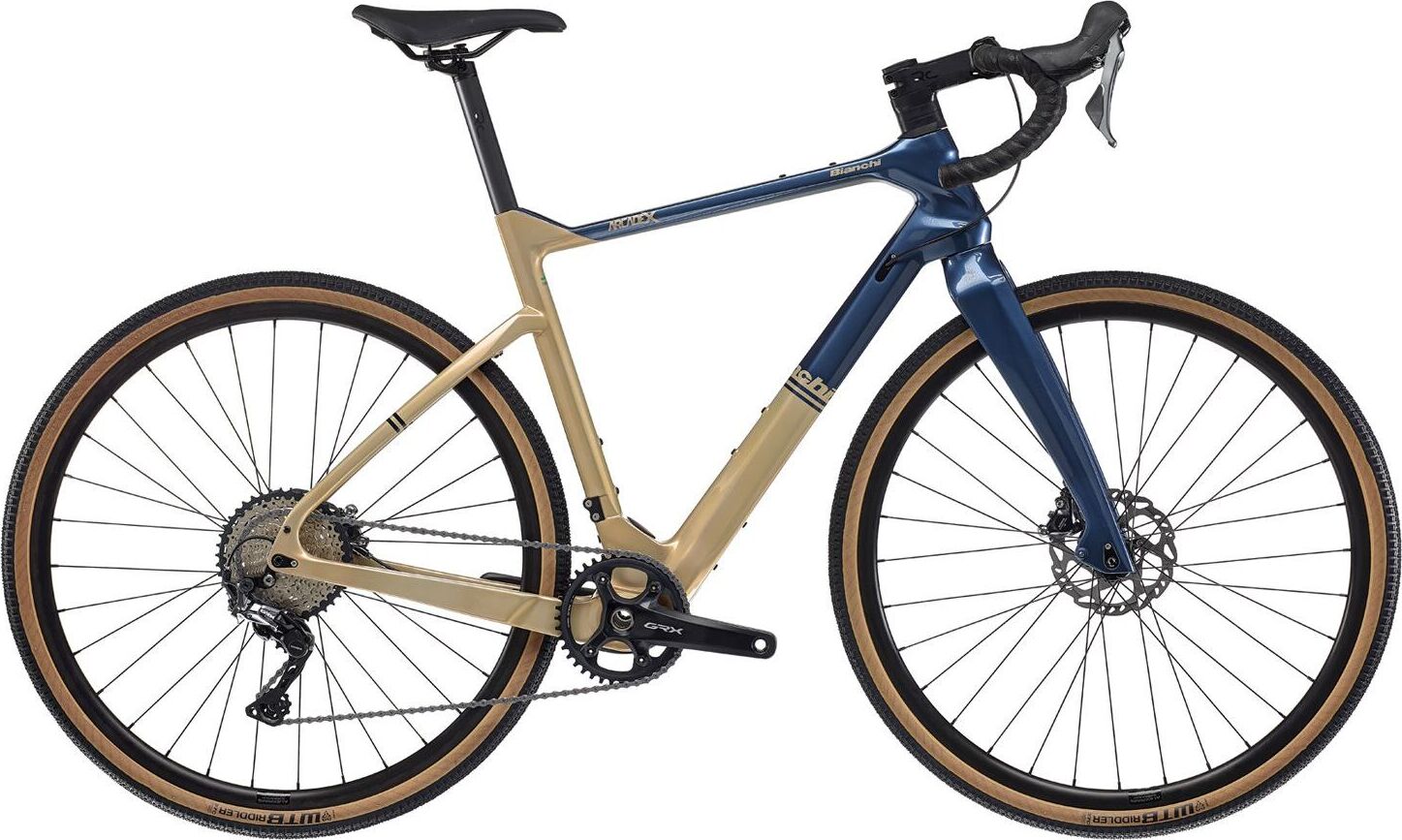

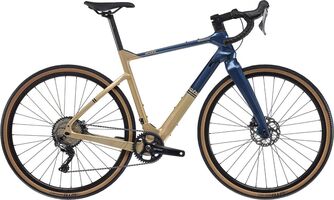

Bianchi Arcadex EKAR 1x13 sp Gravel bike

The Arcadex gravel bike perfectly combines an emotional communion with nature, and the exhilarating rush of Bianchi racing DNA. It delivers distinct performance for the modern gravel rider.

Bianchi brings its hallmark dedication to detail to the gravel world. The frame design has been aerodynamically optimised for performance, while clearance for 700×42 or 650×47 tyres delivers more than enough scope to tackle any rough terrain you might choose. Naturally you’ll find eyelets for mudguards and carrier racks, so the Arcadex can be easily transformed into a high-speed bikepacking machine. The frame also features better integration, to protect against the ingress of mud and grime.

The frame can run manual or electric drivetrains, with an ACR compatible headset and a streamlined connection between frame and stem courtesy of custom head tube and spacers. As a result of these features you’ll enjoy a sleek fully integrated cockpit.

Material	Carbon
Frame	Arcadex CARBON 1.5 aheaset ,seat post 31.6mm, thru axle 12x142mm, flat mount disc version, Pressfit 41 , compatible with 42mm tire and mudguard
Fork	Full Carbon 1.5 flat mount, disc brake, thru axle 12x100mm
Rear derailleur	Campagnolo EKAR 1x13sp
Shifters	Campagnolo EKAR
Crankset	FSA Gossamer Pro BB386EVO 40T 1x13 Campy 13S 2-Tone Black B1 w/o BB, model No CK-6124S, Crank Length: 170mm-XS-S, 172.5mm-M-L, 175mm-XL
Handlebars	Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm=XS/S - 42cm=M/L - 44cm=XL
Stem	Reparto Corse, Alloy 6061 , 1 1/4 , raise 0°,Oversize, plastic adaptor for hose cover 1 1/4 , finish black; Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL
Seatpost	Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm/XS; 350mm/S-M-L-XL
Tires	WTB Riddler Race 700 x 37c, Dual DNA Compound, 60tpi Casing, Aramid Bead, TCS light/fast rolling Tan sidewall
Wheels	Fulcrum Rapid Red 900 DB 2WF-R C22 AFS, alloy, 2-Way fit Ready, rim profile 24mm, width 27,1mm, 28 spokes, HH12- rear HH12/142 N3W
Disc brakes	Campagnolo included in the shifter
Chain	Campagnolo EKAR 1x13 - 117
Disc levers	included
Bottom bracket	Fsa BB-CF86/CZ Stainless bearing for Road carbon / alloy MegaExo crankset Press-Fit 86,5x41
Handlebar tape	La Spirale Ribbon cork
Headset	FSA SMR HS with 1-1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8 , 1.5 , 36°/45° ACB, compressor ring 1.1/8
Brakes rotors	Campagnolo Rotor, AFS 160mm
Saddle	Selle Italia ModelX Superflow FeC, lenght/wide 245x145mm
Drivetrain	Campagnolo Ekar
Number of gears	1x13
